  • XACTFORM 72109 Indexable Thread Mill Int / Ext 1.580 Dia 5.120 OAL

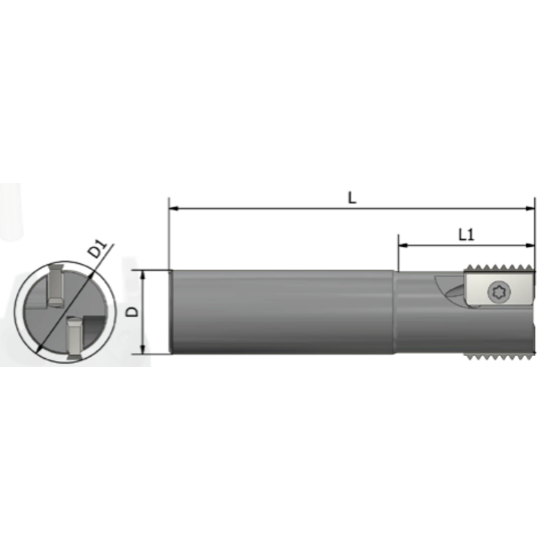

Picture of XACTFORM 72109 Indexable Thread Mill Int / Ext 1.580 Dia 5.120 OAL

XACTFORM 72109 Indexable Thread Mill Int / Ext 1.580 Dia 5.120 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC72109
Delivery date: 3-5 days
$286.00
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Performance Rating High Performance
Package Size 1
Application Thread Milling
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.5800 40.13MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.1200 130.05MM
Neck Length 2.8500 72.39MM
Length Of Cut 1.1811 30.00MM
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Int / Ext
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Automotive Yes
