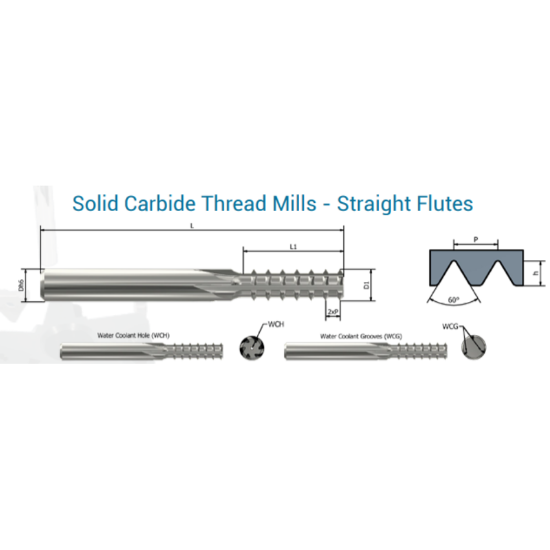

XACTFORM 70916 Carbide Thread Mill 5/16" 24.00TPI Int / Ext 0.200 Dia 2.830 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC70916
Delivery date: 3-5 days
$281.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Grade K20
Shipping State Florida
Coating TiN
Application Thread Milling
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 1.0000 25.40MM
Overall Len 2.8300 71.88MM
Thread Pitch 24.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.2000 5.08MM
Flutes/Inserts 3
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Size 5/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
