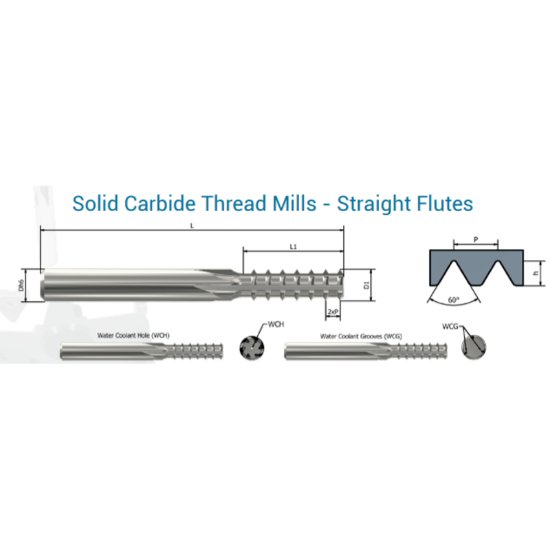

Picture of Xactform 70814 Carbide Thread Mill 1/4" 28.00TPI Int / Ext 0.180 Dia 2.950 OAL 3 Flute

Xactform 70814 Carbide Thread Mill 1/4" 28.00TPI Int / Ext 0.180 Dia 2.950 OAL 3 Flute

Part Number: XAC70814

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295711
Vendor: Sussex Tool and Supply
$256.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.9500 74.93MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.1800 4.57MM - #15
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.7860 19.96MM
Grade K20
Thread Pitch 28.00TPI
Inter/Extern Int / Ext
Thread Size 1/4"
