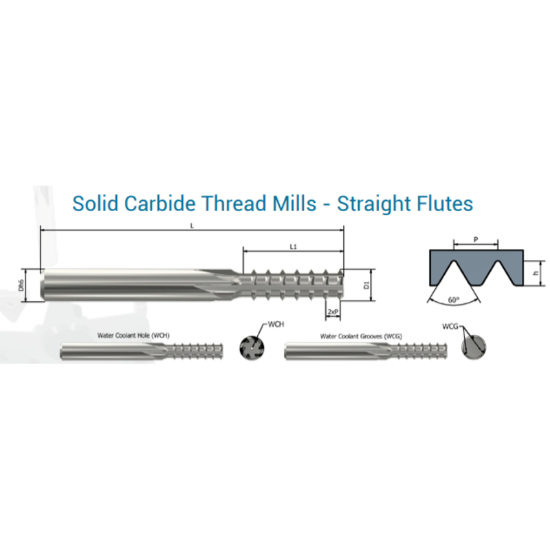

XACTFORM 70813 Carbide Thread Mill 1/4" 28.00TPI Int / Ext 0.160 Dia 2.360 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC70813
Delivery date: 3-5 days
$181.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Florida
Application Thread Milling
Made In USA No
Grade K20
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Size 1/4"
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.1600 4.06MM
Length Of Cut 0.5000 12.70MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 28.00TPI
Machine Side Connection Size 0.1875 4.75MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1870 4.75MM
Overall Len 2.3600 59.94MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
