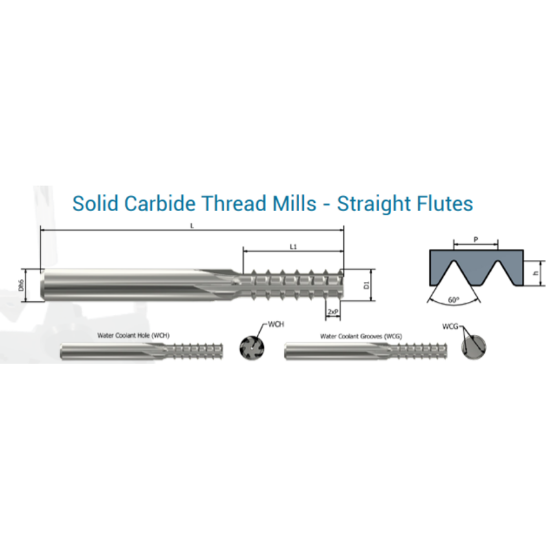

XACTFORM 70807 Carbide Thread Mill 1/2" 13.00TPI Int / Ext 0.310 Dia 3.150 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC70807
Delivery date: 3-5 days
$391.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating TiN
Application Thread Milling
Made In USA No
Package Size 1
Grade K20
Shipping State Florida
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.1500 80.01MM
Thread Size 1/2"
Flutes/Inserts 5
Cutter Dia 0.3100 7.87MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 13.00TPI
Shank/Pilot Dia 0.3120 7.92MM
Length Of Cut 1.0770 27.36MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
