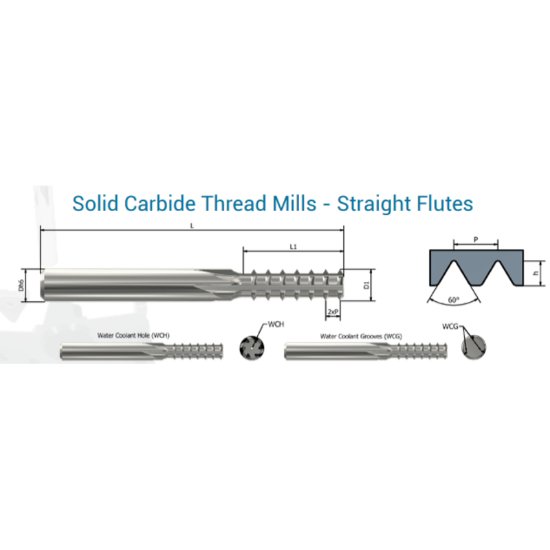

Picture of Xactform 70804 Carbide Thread Mill 5/16" 18.00TPI Int / Ext 0.200 Dia 2.560 OAL 3 Flute

Xactform 70804 Carbide Thread Mill 5/16" 18.00TPI Int / Ext 0.200 Dia 2.560 OAL 3 Flute

Part Number: XAC70804

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295718
Vendor: Sussex Tool and Supply
$256.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5600 65.02MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.2000 5.08MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.6670 16.94MM
Grade K20
Thread Pitch 18.00TPI
Inter/Extern Int / Ext
Thread Size 5/16"
