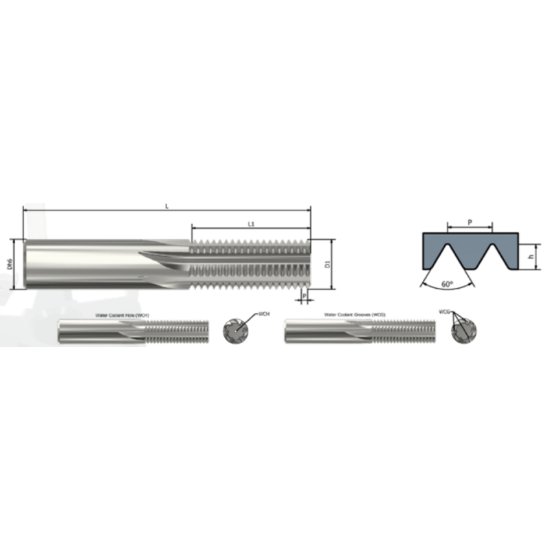

Picture of Xactform 70421 Carbide Thread Mill M36 4.00mm Int / Ext 0.620 Dia 3.620 OAL 6 Flute

Xactform 70421 Carbide Thread Mill M36 4.00mm Int / Ext 0.620 Dia 3.620 OAL 6 Flute

Part Number: XAC70421

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295681
Vendor: Sussex Tool and Supply
$519.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.6200 91.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 6
Tool Dia 0.6200 15.75MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 1.5750 40.01MM
Grade K20
Thread Pitch 4.00MM
Inter/Extern Int / Ext
Thread Size M36
