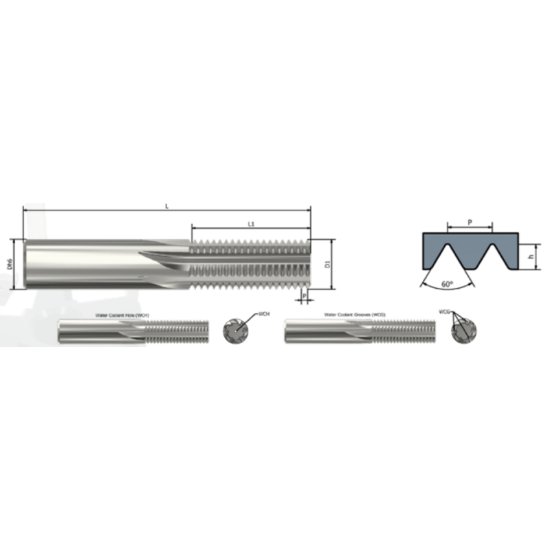

Picture of Xactform 70412 Carbide Thread Mill M10 1.50mm Int / Ext 0.240 Dia 2.250 OAL 5 Flute

Xactform 70412 Carbide Thread Mill M10 1.50mm Int / Ext 0.240 Dia 2.250 OAL 5 Flute

Part Number: XAC70412

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295671
Vendor: Sussex Tool and Supply
$196.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.2500 57.15MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Dia 0.2402 6.10MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.5910 15.01MM
Grade K20
Thread Pitch 1.50MM
Thread Type METRIC
Inter/Extern Int / Ext
Thread Size M10
