XACTFORM 70407 Carbide Thread Mill M5 0.80MM Int / Ext 0.145 Dia 1.650 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC70407
Delivery date: 3-5 days
$152.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Grade K20
Shipping State Florida
Coating TiN
Application Thread Milling
Made In USA No

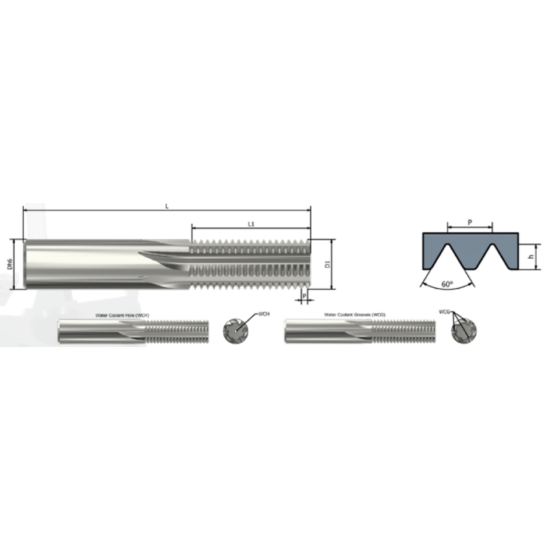

Dimensional Specifications
Thread Size M5
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Cutter Dia 0.1450 3.68MM
Shank/Pilot Dia 0.1870 4.75MM
Overall Len 1.6500 41.91MM
Machine Side Connection Type Cylindrical
Length Of Cut 0.3150 8.00MM
Thread Pitch 0.80MM
Machine Side Connection Size 0.1875 4.75MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
