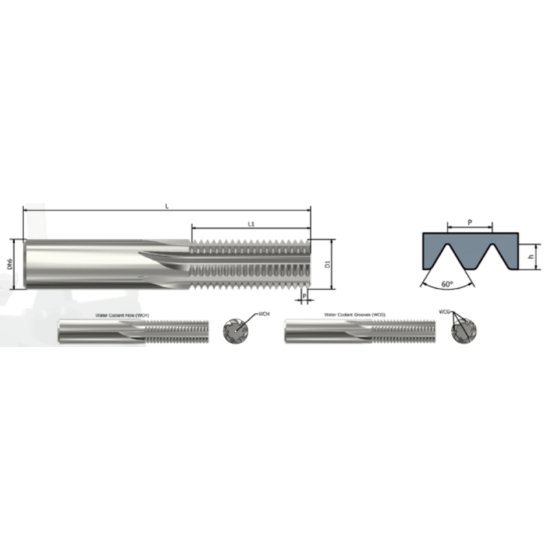

Picture of Xactform 70119 Carbide Thread Mill 11/16" 16.00TPI Int / Ext 0.470 Dia 3.270 OAL 5 Flute

Xactform 70119 Carbide Thread Mill 11/16" 16.00TPI Int / Ext 0.470 Dia 3.270 OAL 5 Flute

Part Number: XAC70119

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295588
Vendor: Sussex Tool and Supply
$374.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.2700 83.06MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.4700 11.94MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 1.1250 28.58MM
Grade K20
Thread Pitch 16.00TPI
Inter/Extern Int / Ext
Thread Size 11/16"
