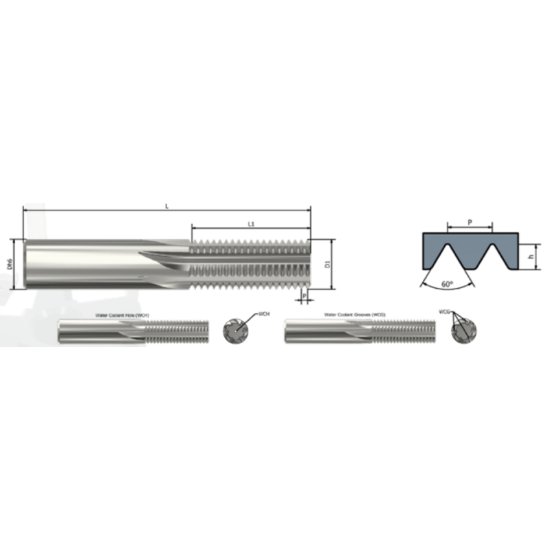

Picture of Xactform 70115 Carbide Thread Mill 9/16" 20.00TPI Int / Ext 0.370 Dia 2.840 OAL 5 Flute

Xactform 70115 Carbide Thread Mill 9/16" 20.00TPI Int / Ext 0.370 Dia 2.840 OAL 5 Flute

Part Number: XAC70115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295582
Vendor: Sussex Tool and Supply
$325.00
XACTFORM Mill Thread Carbide TIN Steel
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.8400 72.14MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3700 9.40MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.9000 22.86MM
Grade K20
Thread Pitch 20.00TPI
Inter/Extern Int / Ext
Thread Size 9/16"
