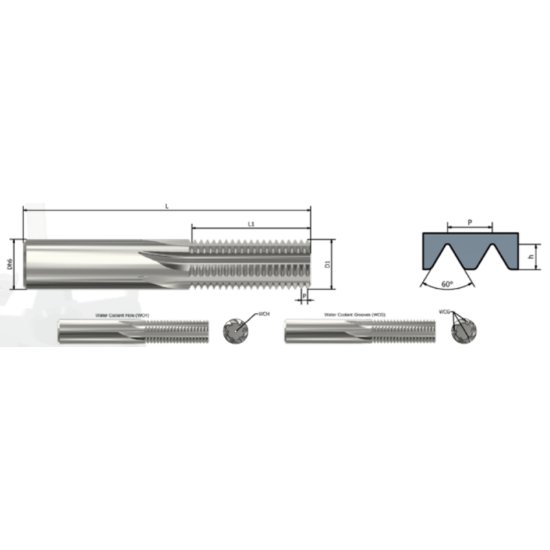

Picture of Xactform 70114 Carbide Thread Mill 7/16" 20.00TPI Int / Ext 0.310 Dia 2.480 OAL 5 Flute

Xactform 70114 Carbide Thread Mill 7/16" 20.00TPI Int / Ext 0.310 Dia 2.480 OAL 5 Flute

Part Number: XAC70114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295581
Vendor: Sussex Tool and Supply
$246.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Overall Length 2.4800 62.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 5
Tool Dia 0.3100 7.87MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
Grade K20
Thread Pitch 20.00TPI
Inter/Extern Int / Ext
Thread Size 7/16"
