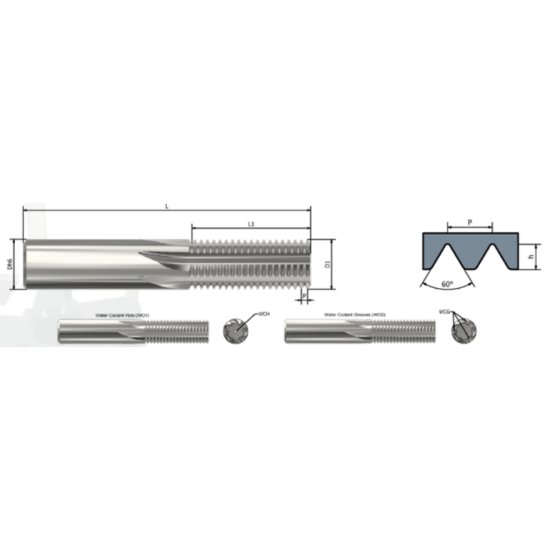

Picture of Xactform 70106 Carbide Thread Mill #6 32.00TPI Int / Ext 0.085 Dia 1.500 OAL 3 Flute

Xactform 70106 Carbide Thread Mill #6 32.00TPI Int / Ext 0.085 Dia 1.500 OAL 3 Flute

Part Number: XAC70106

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295647
Vendor: Sussex Tool and Supply
$132.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0850 2.16MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.2190 5.56MM
Grade K20
Thread Pitch 32.00TPI
Inter/Extern Int / Ext
Thread Size No.6
