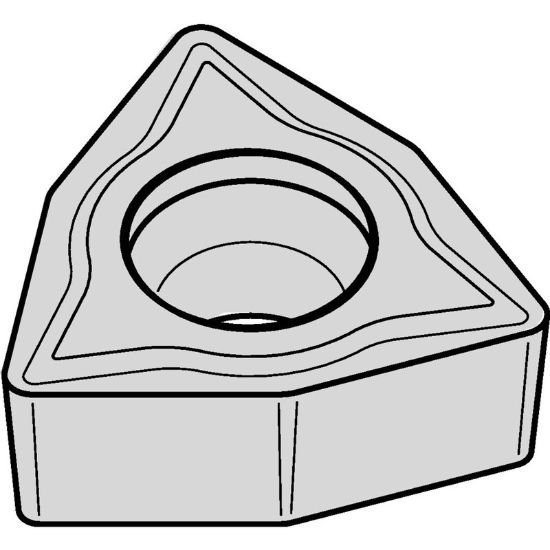

Picture of WPHT15105 CG5 Widia/Kennametal WPHTS030102 CG5 Trigon Positive Carbide 0.0080 0.20mm Radius Finishing, Semi Finishing

WPHT15105 CG5 Widia/Kennametal WPHTS030102 CG5 Trigon Positive Carbide 0.0080 0.20mm Radius Finishing, Semi Finishing

Part Number: WID2827483 ISO: WPHTS030102 CG5 ANSI:WPHT15105 CG5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1074091
Vendor: Sussex Tool and Supply
$12.73
This product has a minimum quantity of 10
WIDIA WPHTS030102 CG5 Positive Trigon Insert Finishing, Semi Finishing PVD, all materials but hardend steel.
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel, <48HRC Steel
Coating TIN
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Corner Radius 0.0080 0.20MM
Insert Style WP
Insert Shape/Cutter Pocket Shape TRIGON
Grade CG5
Insert Type Positive
Insert Size Ic 03 "1.5"
Insert Fits Trigon
