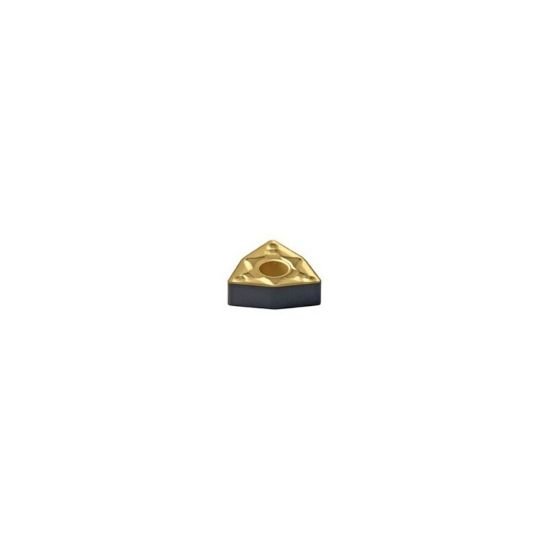

Picture of WNMG432MHC TN20 Canela Tool WNMG080408MHC TN20 Trigon Negative Carbide Finishing, Semi Finishing

WNMG432MHC TN20 Canela Tool WNMG080408MHC TN20 Trigon Negative Carbide Finishing, Semi Finishing

Part Number: CANWNMG432MHC-TN20 ISO: WNMG080408MHC TN20 ANSI:WNMG432MHC TN20
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$13.57
This product has a minimum quantity of 10
SKU: 1035372

Description

CANELA TOOL WNMG080408MHC TN20 Trigon Negative Insert General purpose wear resistant grade. It has an enriched substrate that has exceptionally good deformation as well as fracture resistance. The multi-layer coating includes aluminium oxide to add additional heat and wear resistance. It is used to machine steel and stainless steel at lower speeds than TN15.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 12 "43"
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade TN20
Compatibility & Fit
Insert Fits Trigon
