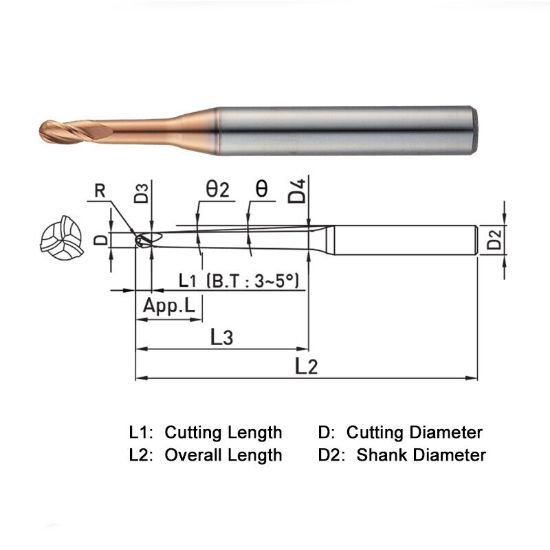

Picture of Widin ZSTNB3020-70-09 Dia 2mm SH 0.2362 LOC 0.0669 OAL4.3307 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin ZSTNB3020-70-09 Dia 2mm SH 0.2362 LOC 0.0669 OAL4.3307 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDZSTNB3020-70-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1228621
Vendor: Sussex Tool and Supply
$93.91
WIDIN Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 3 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.0787 2.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0669 1.70MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.7559 70.00MM
