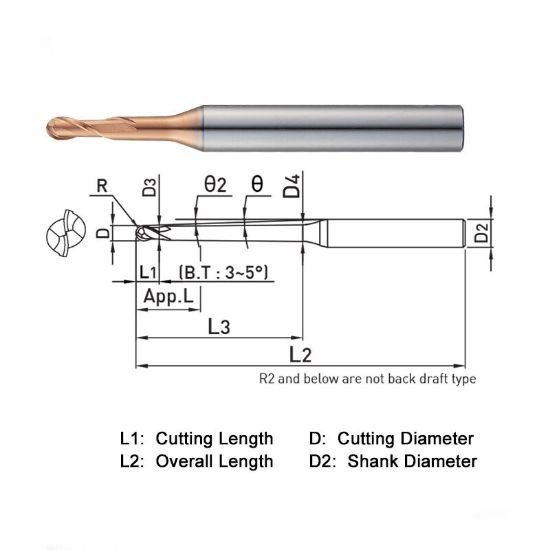

Picture of Widin ZSTNB20A06250937-1.12-3SP Dia 1/16 SH 0.1250 LOC 0.0930 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin ZSTNB20A06250937-1.12-3SP Dia 1/16 SH 0.1250 LOC 0.0930 OAL 3.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDZSTNB20A06250937-1.12-3SP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1228606

Description

WIDIN End Mill Carbide AlTiN Ball Nose 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.0625 1.59MM - 1/16
Length Of Cut 0.0930 2.36MM
Neck Length 1.1200 28.45MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
