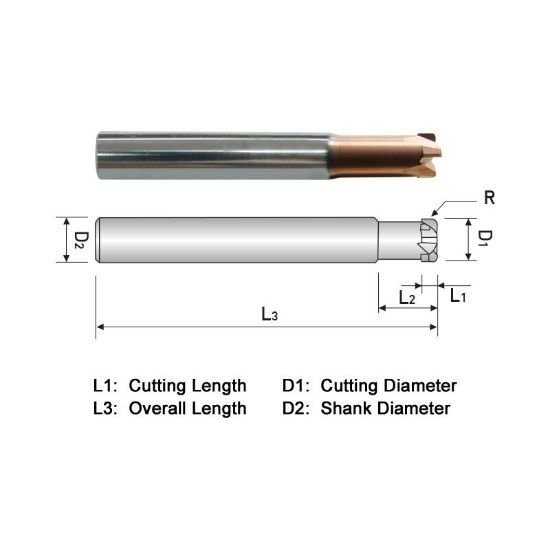

Picture of Widin ZSPM4A032 Dia 1/2 SH 0.50 LOC 0.20 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.1250 3.18mm Z-Star

Widin ZSPM4A032 Dia 1/2 SH 0.50 LOC 0.20 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.1250 3.18mm Z-Star

Part Number: WIDZSPM4A032
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$92.17
SKU: 1228485

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.1250 3.18MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.2000 5.08MM
Neck Length 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.1250 3.18MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
