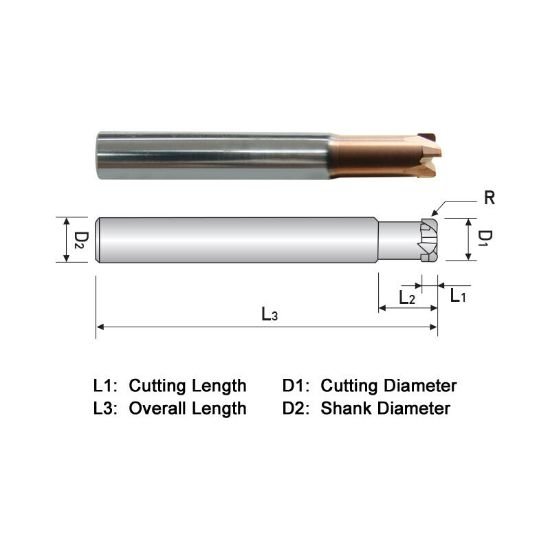

Picture of Widin ZSPM4A024 Dia 3/8 SH 0.3750 LOC 0.1500 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0937 2.38mm Z-Star

Widin ZSPM4A024 Dia 3/8 SH 0.3750 LOC 0.1500 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0937 2.38mm Z-Star

Part Number: WIDZSPM4A024
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.94
SKU: 1228483

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0937 2.38MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.1500 3.81MM
Neck Length 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0937 2.38MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
