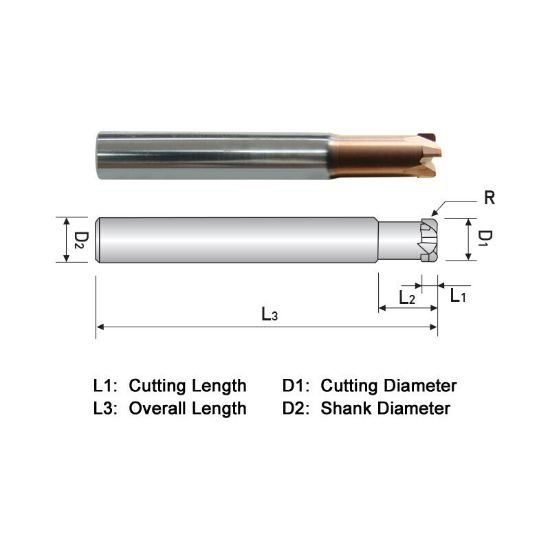

Picture of Widin ZSPM4A020L Dia 5/16 SH 0.3125 LOC 0.1300 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0937 2.38mm Z-Star

Widin ZSPM4A020L Dia 5/16 SH 0.3125 LOC 0.1300 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0937 2.38mm Z-Star

Part Number: WIDZSPM4A020L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1228482
Vendor: Sussex Tool and Supply
$54.20
WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0937 2.38MM Standard Flute Flutes 4 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.1300 3.30MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0937 2.38MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.2500 31.75MM
