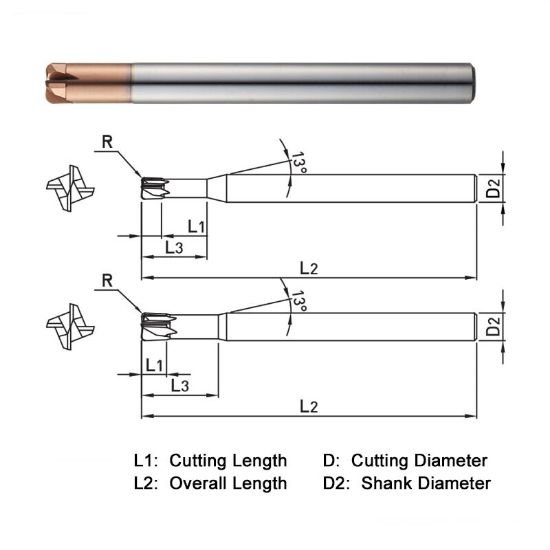

Picture of Widin ZSPM4120-30 Dia 12mm SH 0.4724 LOC 0.1969 OAL 3.1496 End Mill High Helix Carbide AlTiN Single End Corner Radius0.1181 3.00mm Z-Star

Widin ZSPM4120-30 Dia 12mm SH 0.4724 LOC 0.1969 OAL 3.1496 End Mill High Helix Carbide AlTiN Single End Corner Radius0.1181 3.00mm Z-Star

Part Number: WIDZSPM4120-30
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$92.99
SKU: 1228474

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.1181 3.00MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Of Cut 0.1969 5.00MM
Neck Length 0.9843 25.00MM
Geometry & Angles
Corner Radius 0.1181 3.00MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
