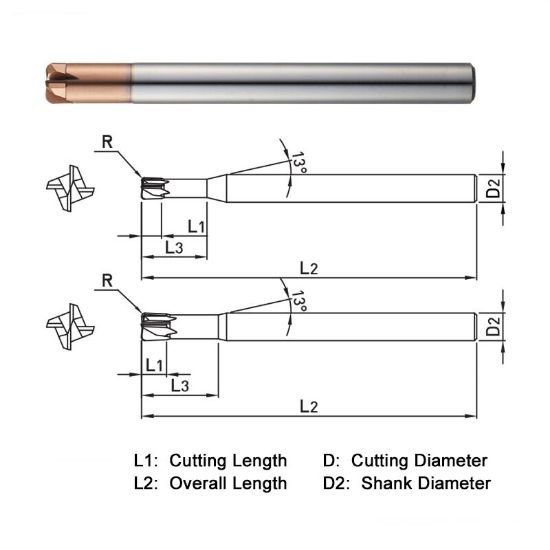

Picture of Widin ZSPM4080-10 Dia 8mm SH 0.3150 LOC 0.1378 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm Z-Star

Widin ZSPM4080-10 Dia 8mm SH 0.3150 LOC 0.1378 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm Z-Star

Part Number: WIDZSPM4080-10
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$50.69
SKU: 1228467

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0394 1.00MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.1378 3.50MM
Neck Length 0.4724 12.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
