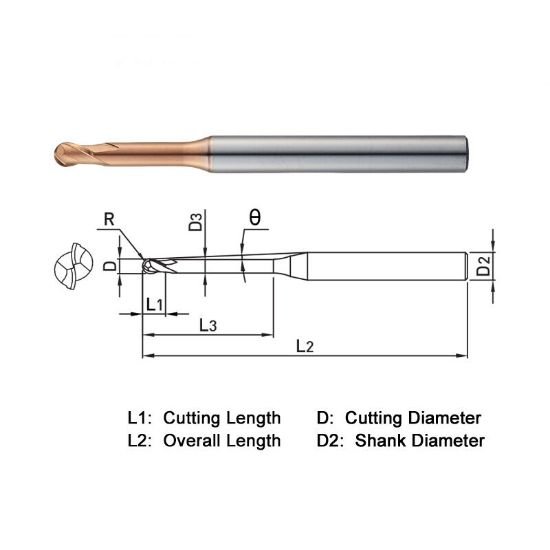

Picture of Widin ZSLNB2001-0.2 Dia 0.10mm SH 0.1575 LOC 0.0031 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin ZSLNB2001-0.2 Dia 0.10mm SH 0.1575 LOC 0.0031 OAL 1.771 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDZSLNB2001-0.2
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$96.74
SKU: 1228011

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0039 0.10MM - #102
Length Of Cut 0.0031 0.08MM
Neck Length 0.0079 0.20MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
