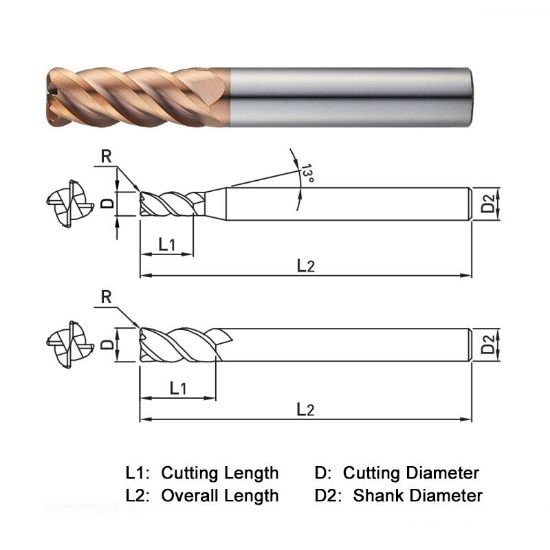

Picture of Widin ZR7140610 Dia 6mm SH 0.2362 LOC 0.5906 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm Z-Star

Widin ZR7140610 Dia 6mm SH 0.2362 LOC 0.5906 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0394 1.00mm Z-Star

Part Number: WIDZR7140610
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$43.27
SKU: 1227784

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0394 1.00MM 4 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.2362 6.00MM
Length Of Cut 0.5906 15.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
