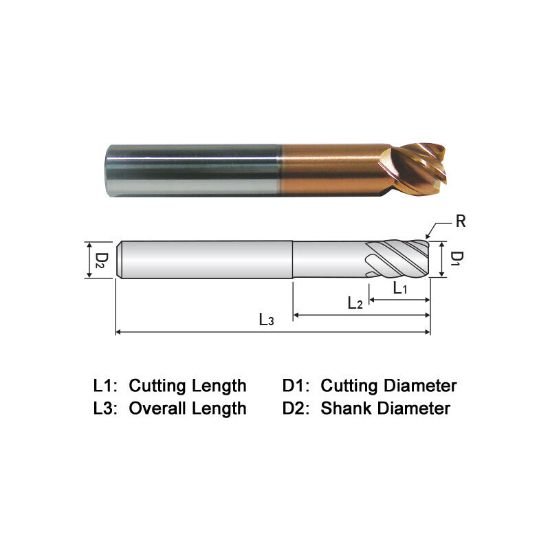

Picture of Widin ZR706A02030L Dia 5/16 SH 0.3125 LOC 0.40 OAL 6.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Z-Star

Widin ZR706A02030L Dia 5/16 SH 0.3125 LOC 0.40 OAL 6.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Z-Star

Part Number: WIDZR706A02030L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$101.00
SKU: 1227764

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM 6 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 6
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.4000 10.16MM
Neck Length 1.8000 45.72MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
