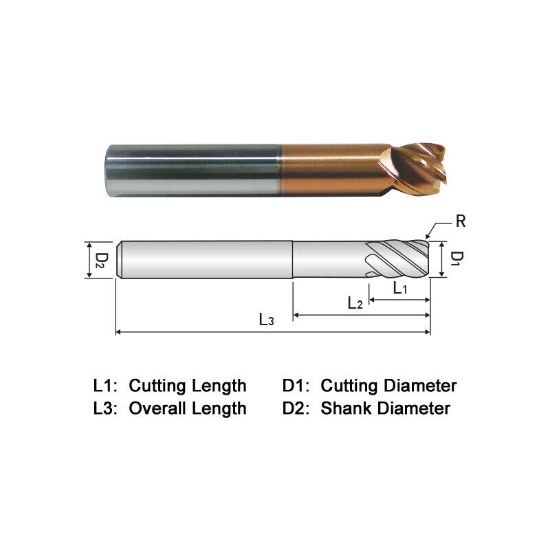

Picture of Widin ZR706A02020 Dia 5/16 SH 0.3125 LOC 0.40 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Widin ZR706A02020 Dia 5/16 SH 0.3125 LOC 0.40 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Part Number: WIDZR706A02020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$82.59
SKU: 1227761

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM 6 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 6
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.4000 10.16MM
Neck Length 1.1300 28.70MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
