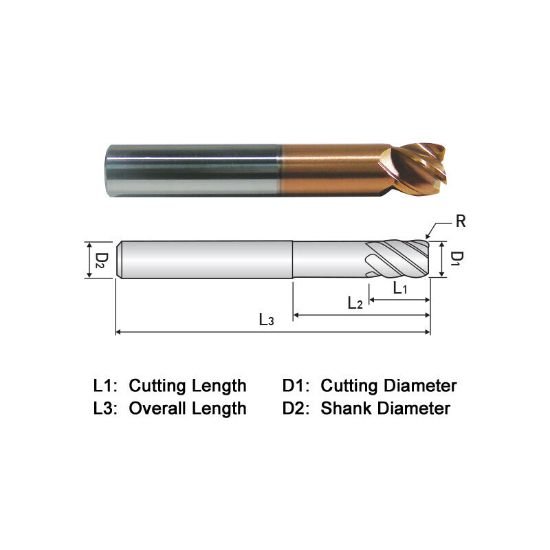

Picture of Widin ZR706A01620 Dia 1/4 SH 0.2500 LOC 0.3330 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Widin ZR706A01620 Dia 1/4 SH 0.2500 LOC 0.3330 OAL 3.00 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Part Number: WIDZR706A01620
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.69
SKU: 1227757

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM 6 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 6
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.3330 8.46MM
Neck Length 0.8000 20.32MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
