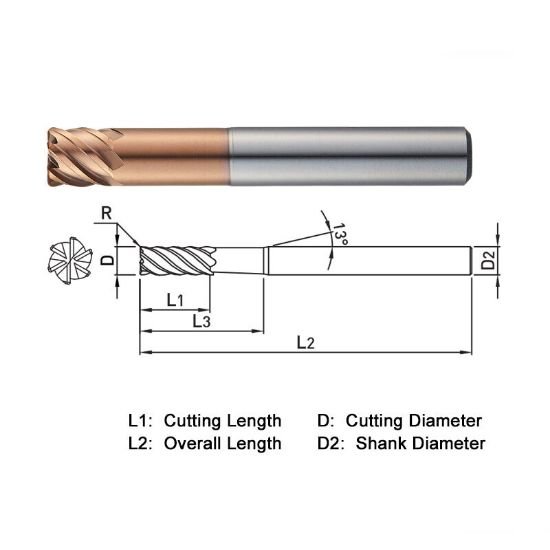

Picture of Widin ZR7060800524 Dia 8mm SH 0.3150 LOC 0.3150 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm Z-Star

Widin ZR7060800524 Dia 8mm SH 0.3150 LOC 0.3150 OAL 2.3622 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm Z-Star

Part Number: WIDZR7060800524
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$67.87
SKU: 1227744

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM 6 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 6
Tool Dia 0.3150 8.00MM
Length Of Cut 0.3150 8.00MM
Neck Length 0.9449 24.00MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
