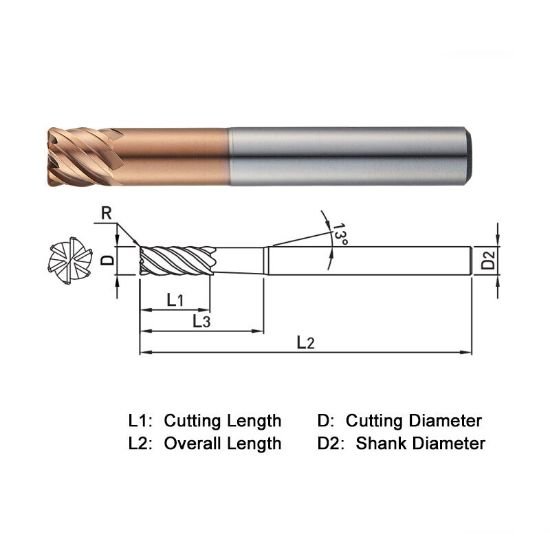

Picture of Widin ZR706060002030SP Dia 6mm SH 0.2362 LOC 0.7700 OAL 2.9528 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Widin ZR706060002030SP Dia 6mm SH 0.2362 LOC 0.7700 OAL 2.9528 End Mill High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-Star

Part Number: WIDZR706060002030SP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$75.39
SKU: 1227740

Description

WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM 6 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 6
Tool Dia 0.2362 6.00MM
Length Of Cut 0.7700 19.56MM
Neck Length 1.1811 30.00MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 45
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
