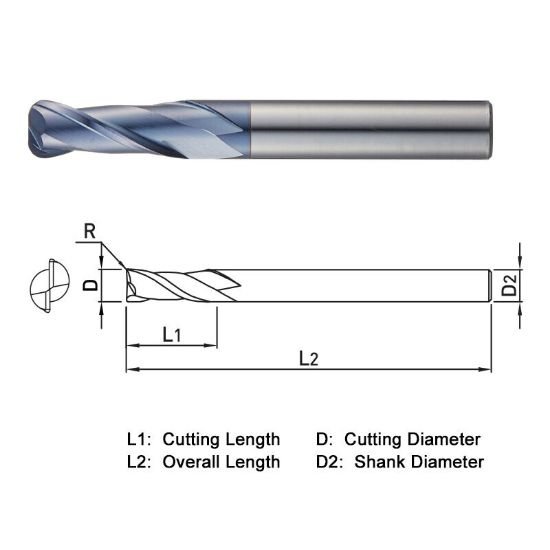

Picture of Widin ZR5122015 Dia 20mm SH 0.7874 LOC 1.7717 OAL4.3307 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0591 1.50mm Z-ClassIC

Widin ZR5122015 Dia 20mm SH 0.7874 LOC 1.7717 OAL4.3307 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0591 1.50mm Z-ClassIC

Part Number: WIDZR5122015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227281
Vendor: Sussex Tool and Supply
$278.20
WIDIN Standard Helix End Mill Carbide AlTiN Corner Radius 0.0591 1.50MM Standard Flute Flutes 2 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.7717 45.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0591 1.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
