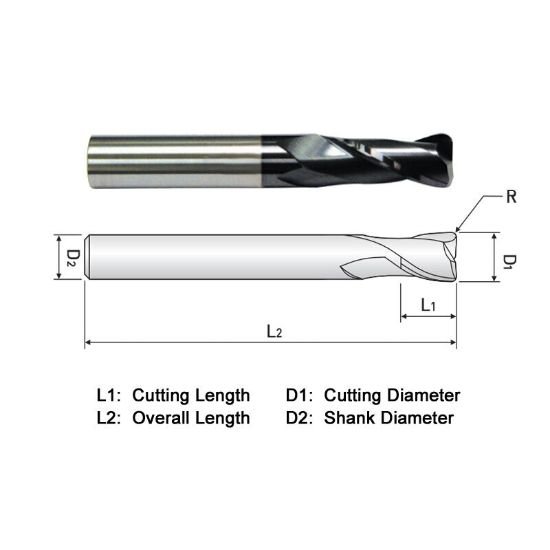

Picture of Widin ZR506A03220 Dia 1/2 SH 0.50 LOC 1.00 OAL3.2500 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-ClassIC

Widin ZR506A03220 Dia 1/2 SH 0.50 LOC 1.00 OAL3.2500 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm Z-ClassIC

Part Number: WIDZR506A03220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227249
Vendor: Sussex Tool and Supply
$97.27
WIDIN High Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM Standard Flute Flutes 6 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.2500 82.55MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
