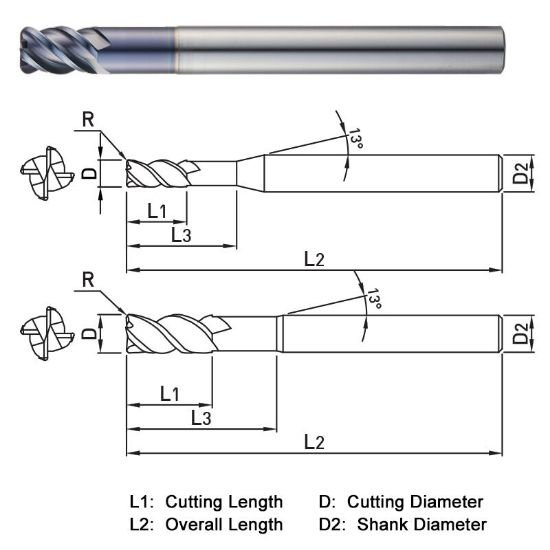

Picture of Widin ZR324H0810 Dia 8mm SH 0.3150 LOC 0.4724 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm THUNDER

Widin ZR324H0810 Dia 8mm SH 0.3150 LOC 0.4724 OAL 3.9370 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0394 1.00mm THUNDER

Part Number: WIDZR324H0810
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$53.71
SKU: 1220146

Description

WIDIN High Helix End Mill Carbide TiAlN Corner Radius 0.0394 1.00MM 4 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Of Cut 0.4724 12.00MM
Neck Length 0.9843 25.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 45
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
