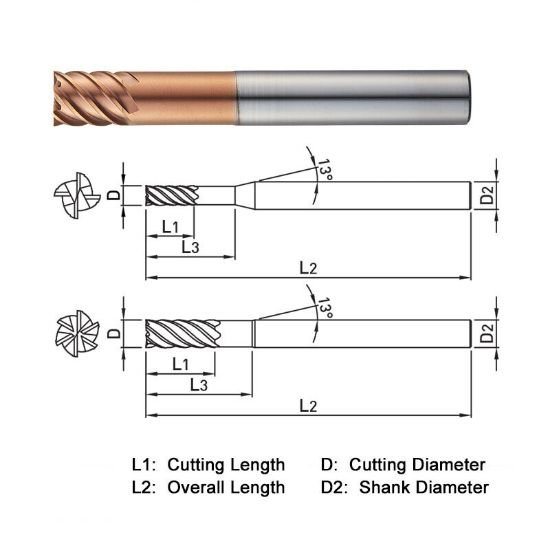

Picture of Widin ZE726100 Dia 10mm SH 0.3937 LOC 0.4724 OAL2.9528 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-Star

Widin ZE726100 Dia 10mm SH 0.3937 LOC 0.4724 OAL2.9528 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-Star

Part Number: WIDZE726100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1227022
Vendor: Sussex Tool and Supply
$86.82
WIDIN High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 6 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 6
Tool Dia 0.3937 10.00MM
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 50
Center Cutting Center Cutting
Neck Length 1.2598 32.00MM
