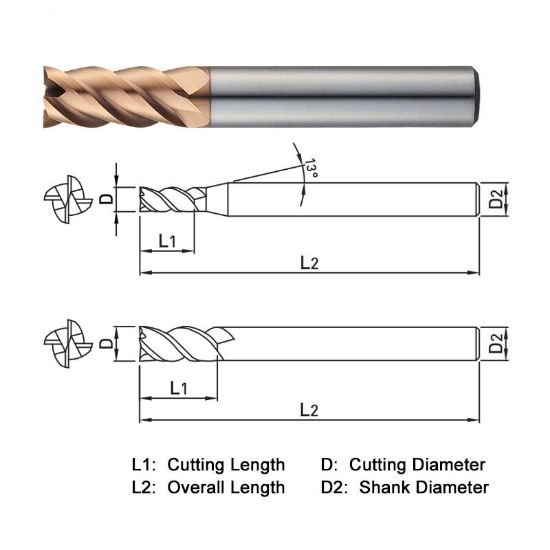

Picture of Widin ZE714020 Dia 2mm SH 0.2362 LOC 0.1969 OAL1.5748 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-Star

Widin ZE714020 Dia 2mm SH 0.2362 LOC 0.1969 OAL1.5748 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp Z-Star

Part Number: WIDZE714020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1226973
Vendor: Sussex Tool and Supply
$30.29
WIDIN High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End Z-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 1.5748 40.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.0787 2.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.1969 5.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
