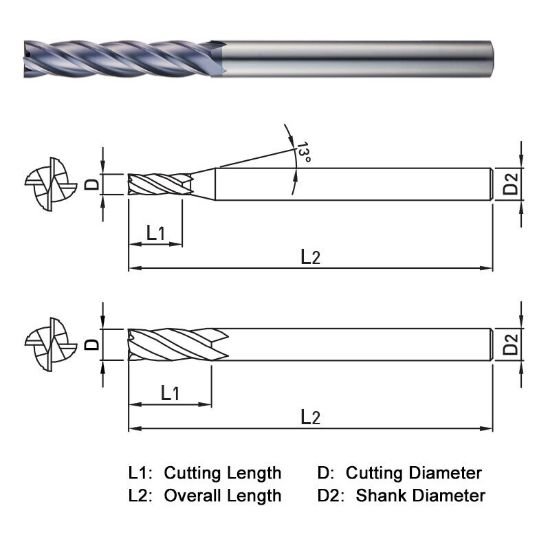

Picture of Widin ZE534122 Dia 12mm SH 0.4724 LOC 3.1496 OAL7.8740 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Widin ZE534122 Dia 12mm SH 0.4724 LOC 3.1496 OAL7.8740 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Part Number: WIDZE534122

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218497
Vendor: Sussex Tool and Supply
$170.26
WIDIN Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Type LONG
Performance Rating High Performance
Length Of Cut 3.1496 80.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
