Picture of Widin ZE522040 Dia 4mm SH 0.2362 LOC 0.9843 OAL2.9528 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Widin ZE522040 Dia 4mm SH 0.2362 LOC 0.9843 OAL2.9528 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp ClassIC

Part Number: WIDZE522040
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1218459
Vendor: Sussex Tool and Supply
$38.18

Description

WIDIN Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 2 Single End CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting

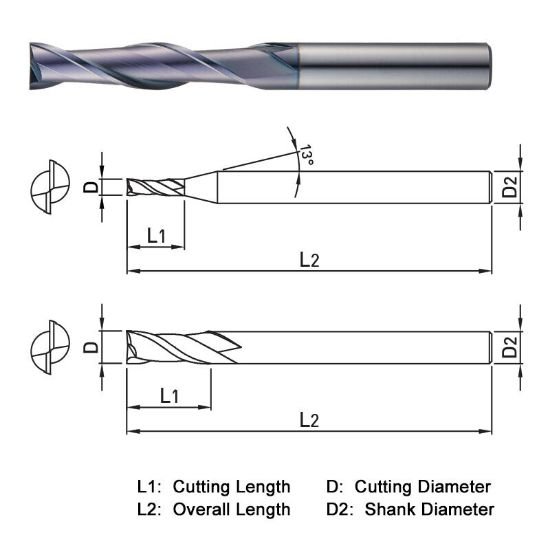

Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Length Of Cut 0.9843 25.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
