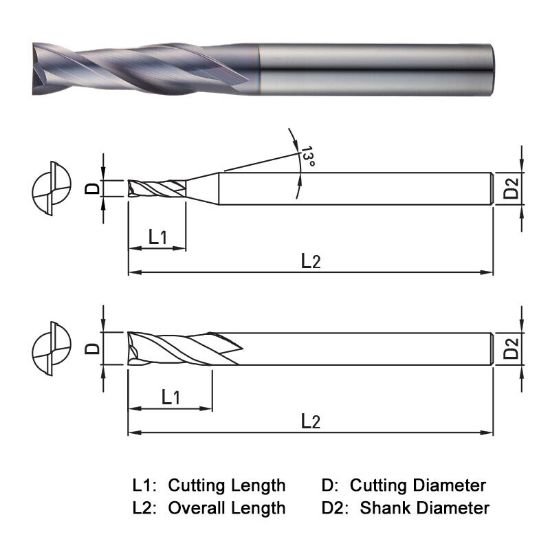

Picture of Widin ZE322120 Dia 12mm SH 0.4724 LOC 1.1811 OAL 3.5433 End Mill Standard Helix Carbide TiAlN Single End Square Sharp THUNDER

Widin ZE322120 Dia 12mm SH 0.4724 LOC 1.1811 OAL 3.5433 End Mill Standard Helix Carbide TiAlN Single End Square Sharp THUNDER

Part Number: WIDZE322120
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$69.73
SKU: 1220016

Description

WIDIN End Mill Carbide TiAlN Square Sharp 2 Flute Single End THUNDER
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5433 90.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
