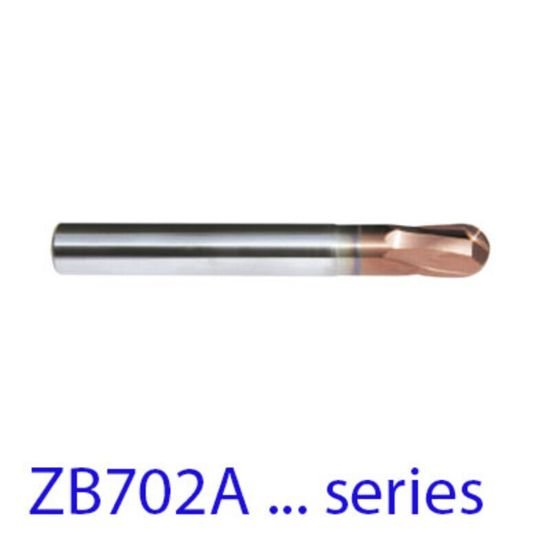

Picture of Widin ZB702A016125L Dia 1/4 SH 0.2500 LOC 0.3500 OAL 6.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Widin ZB702A016125L Dia 1/4 SH 0.2500 LOC 0.3500 OAL 6.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-Star

Part Number: WIDZB702A016125L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$87.47
SKU: 1226705

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.3500 8.89MM
Neck Length 1.6000 40.64MM
Geometry & Angles
Helix Angle 12
Performance & Capacity
Cut Rating >50HRC Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
