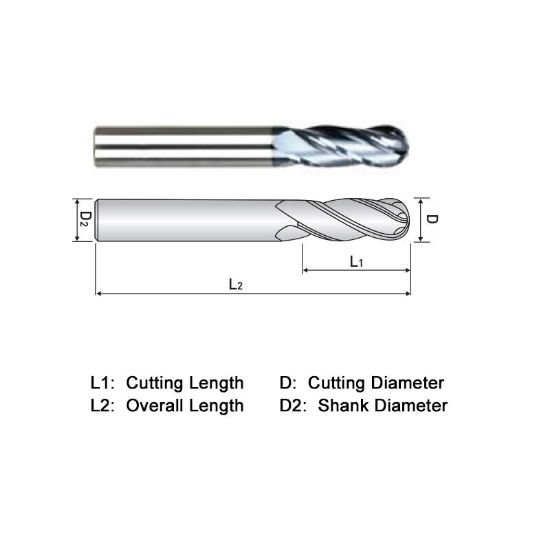

Picture of Widin ZB304064 Dia 1 SH 1.00 LOC 1.50 OAL 4.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Widin ZB304064 Dia 1 SH 1.00 LOC 1.50 OAL 4.00 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Part Number: WIDZB304064
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$124.07
SKU: 1219007

Description

WIDIN End Mill Carbide AlTiN Ball Nose 4 Flute Single End General Purpose
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Of Cut 1.5000 38.10MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
