Picture of Widin ZA304064S Dia 1 SH 0.7500 LOC 1.00 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp General Purpose

Widin ZA304064S Dia 1 SH 0.7500 LOC 1.00 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp General Purpose

Part Number: WIDZA304064S
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1219154
Vendor: Sussex Tool and Supply
$100.98

Description

WIDIN Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End General Purpose Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting

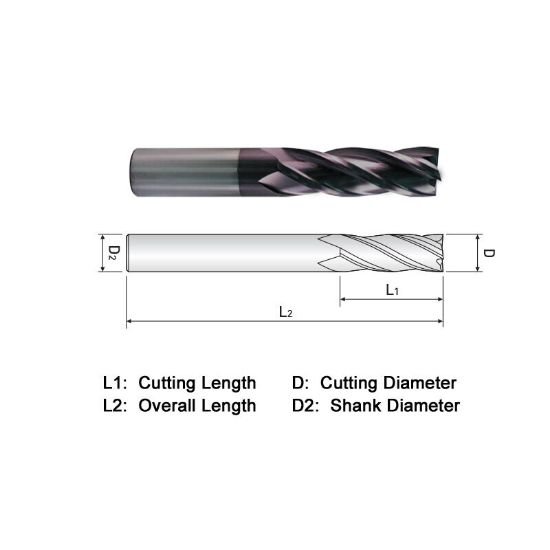

Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
