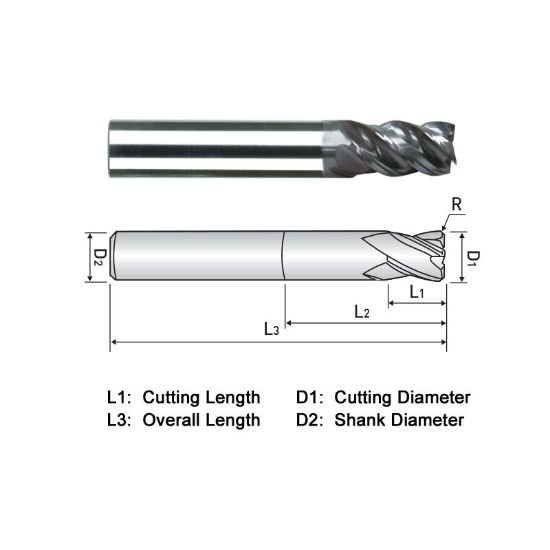

Picture of Widin XXR534A040 Dia 5/8 SH 0.6250 LOC 0.7500 OAL 4.1250 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0300 0.76mm XX-Star

Widin XXR534A040 Dia 5/8 SH 0.6250 LOC 0.7500 OAL 4.1250 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0300 0.76mm XX-Star

Part Number: WIDXXR534A040
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$166.31
SKU: 1226633

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0300 0.76MM 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.1250 104.78MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Neck Length 2.2500 57.15MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
