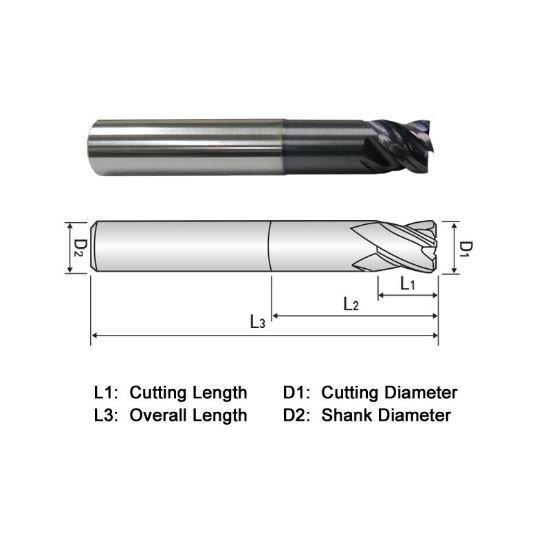

Picture of Widin XXE534A024 Dia 3/8 SH 0.3750 LOC 0.50 OAL 4.00 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Widin XXE534A024 Dia 3/8 SH 0.3750 LOC 0.50 OAL 4.00 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Part Number: WIDXXE534A024
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$66.39
SKU: 1226558

Description

WIDIN Variable Helix End Mill Carbide TiAlN Square Sharp 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5000 12.70MM
Neck Length 1.8750 47.63MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
