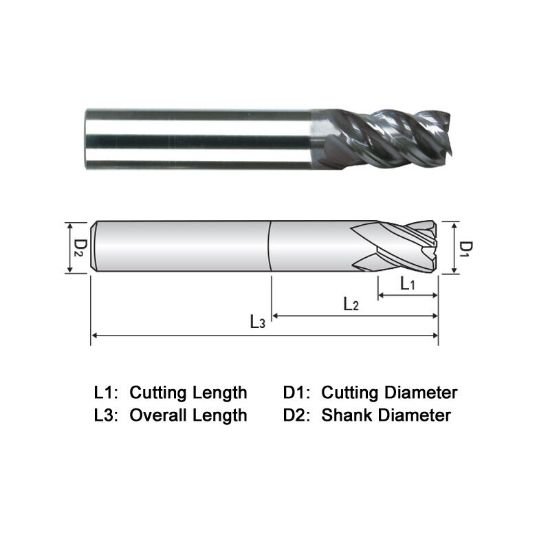

Picture of Widin XXE524A033 Dia 1/2 SH 0.50 LOC 0.6250 OAL 6.00 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Widin XXE524A033 Dia 1/2 SH 0.50 LOC 0.6250 OAL 6.00 End Mill Variable Helix Carbide TiAlN Single End Square Sharp XX-Star

Part Number: WIDXXE524A033
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.94
SKU: 1226552

Description

WIDIN Variable Helix End Mill Carbide TiAlN Square Sharp 4 Flute Single End XX-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.6250 15.88MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
