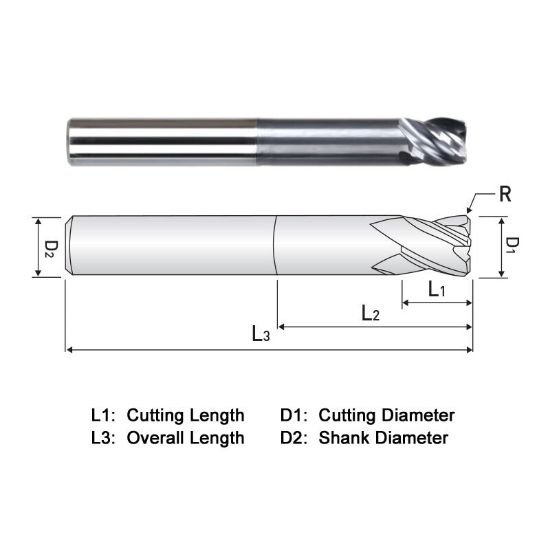

Picture of Widin XR525A064060 Dia 1 SH 1.00 LOC 2.2500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm X-Star

Widin XR525A064060 Dia 1 SH 1.00 LOC 2.2500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm X-Star

Part Number: WIDXR525A064060
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1226492
Vendor: Sussex Tool and Supply
$357.73

Description

WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Length Of Cut 2.2500 57.15MM
Neck Length 3.0000 76.20MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
