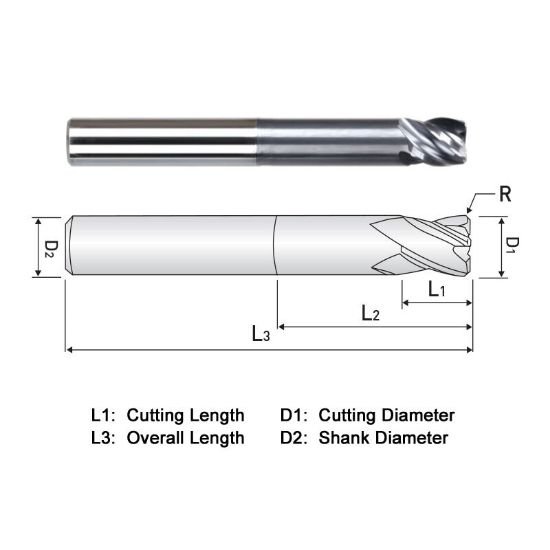

Picture of Widin XR525A040060L Dia 5/8 SH 0.6250 LOC 1.7500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm X-Star

Widin XR525A040060L Dia 5/8 SH 0.6250 LOC 1.7500 OAL5.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm X-Star

Part Number: WIDXR525A040060L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1226484
Vendor: Sussex Tool and Supply
$203.90
WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.7500 44.45MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 3.1250 79.38MM
