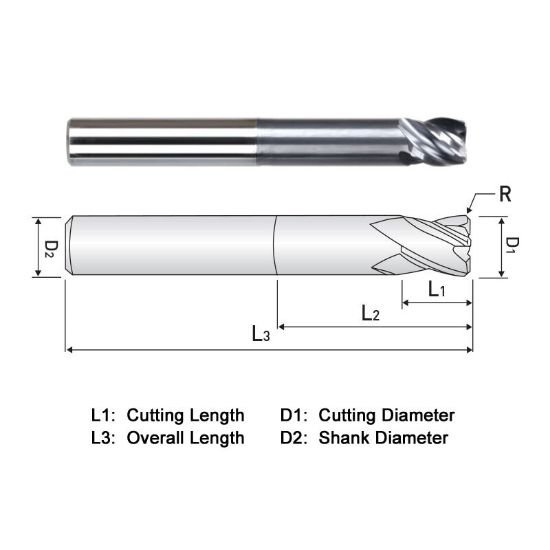

Picture of Widin XR525A040045L Dia 5/8 SH 0.6250 LOC 1.7500 OAL 5.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0450 1.14mm X-Star

Widin XR525A040045L Dia 5/8 SH 0.6250 LOC 1.7500 OAL 5.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0450 1.14mm X-Star

Part Number: WIDXR525A040045L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$213.23
SKU: 1226482

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0450 1.14MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.7500 44.45MM
Neck Length 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.0450 1.14MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
