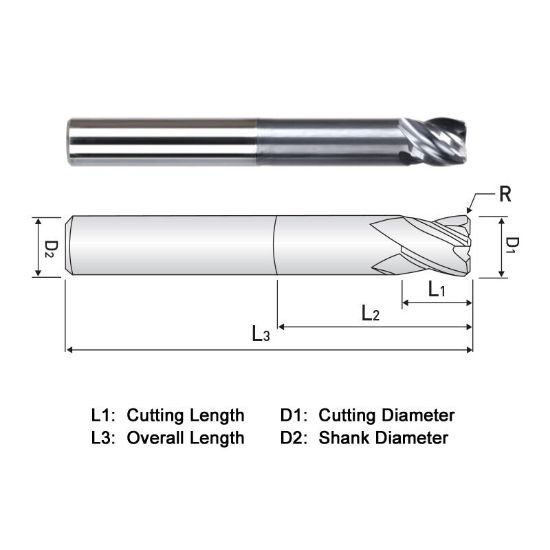

Picture of Widin XR525A032020L Dia 1/2 SH 0.50 LOC 1.3750 OAL 5.00 End Mill Variable Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm X-Star

Widin XR525A032020L Dia 1/2 SH 0.50 LOC 1.3750 OAL 5.00 End Mill Variable Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm X-Star

Part Number: WIDXR525A032020L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$157.04
SKU: 1226474

Description

WIDIN Variable Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.3750 34.93MM
Neck Length 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
