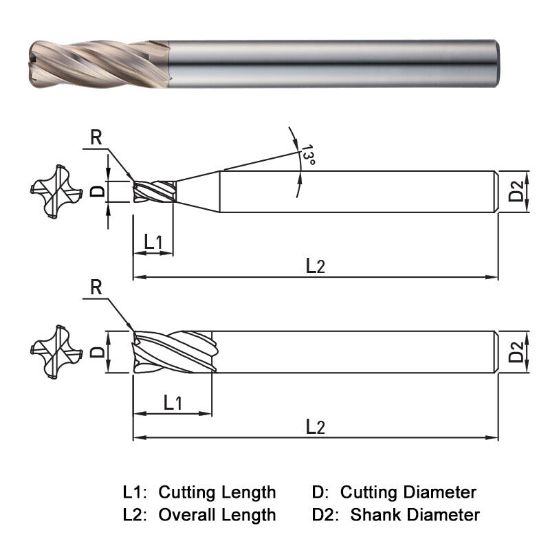

WIDIN XR5241005SP1 DIA 10MM SH 0.3937 LOC 0.8661 OAL 3.2480 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius 0.0197 0.50MM X-STAR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDXR5241005SP1
Delivery date: 3-5 days
$82.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA No
Coating AlTiN
Package Size 1
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.3937 10.00MM
Length Type Standard / With Neck
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Shank/Pilot Dia 0.3937 10.00MM
Neck Length 1.4961 38.00MM
Flutes/Inserts 4
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.8660 22.00MM
Inch/Metric Metric
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Overall Len 3.2480 82.50MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
