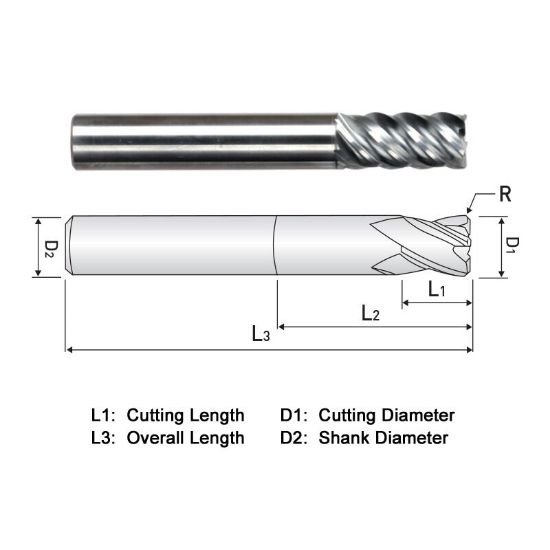

Picture of Widin XR515A048125 Dia 3/4 SH 0.7500 LOC 1.50 OAL 4.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.1250 3.18mm X-Star

Widin XR515A048125 Dia 3/4 SH 0.7500 LOC 1.50 OAL 4.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.1250 3.18mm X-Star

Part Number: WIDXR515A048125
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$241.44
SKU: 1226443

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.1250 3.18MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Geometry & Angles
Corner Radius 0.1250 3.18MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
