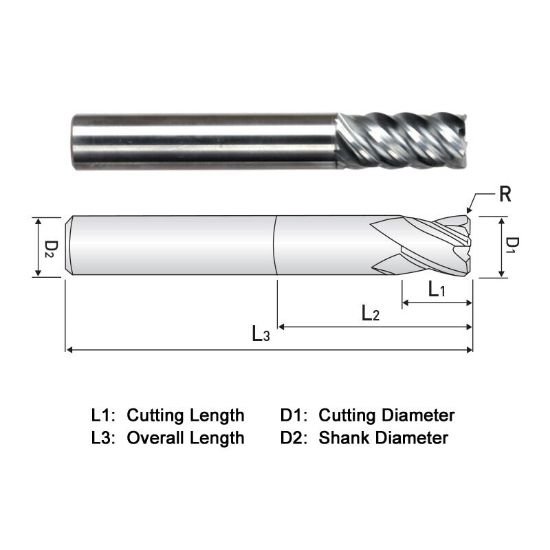

Picture of Widin XR505A040015 Dia 5/8 SH 0.6250 LOC 0.7500 OAL 3.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0150 0.38mm X-Star

Widin XR505A040015 Dia 5/8 SH 0.6250 LOC 0.7500 OAL 3.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.0150 0.38mm X-Star

Part Number: WIDXR505A040015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$141.42
SKU: 1226278

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.0150 0.38MM 5 Flute Single End X-STAR
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Helix Angle Variable
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
